Drapes and Company Server Room Cabling Build-Out

A ground-up server room fit-out for Drapes and Company Corporation's office in Mactan Newtown, Lapu-Lapu City - dressed patch panels, switch configuration, and CCTV NVR integration in a single rack, built for day-to-day serviceability.

Client
Drapes and Company Corporation
Category
Server Solutions & Structured Cabling
Location
Mactan Newtown, Lapu-Lapu City
Scope
Rack Fit-Out, Patch Panels, Switch & NVR Setup
Fully populated server rack with switches, color-coded red and green patch panels, a rack-mounted monitor and keyboard, dual NVRs, and a UPS at the base.

One rack, fully built out: switching, structured cabling, and CCTV recording, all in a single serviceable enclosure.

The Process

From an open frame to a working network

Open, unpopulated server rack frame in a glass-walled server room with bundles of blue Cat6 cable drops hanging down, ready for termination.

Cable drops routed to the open rack frame, staged and ready for termination before any hardware goes in.

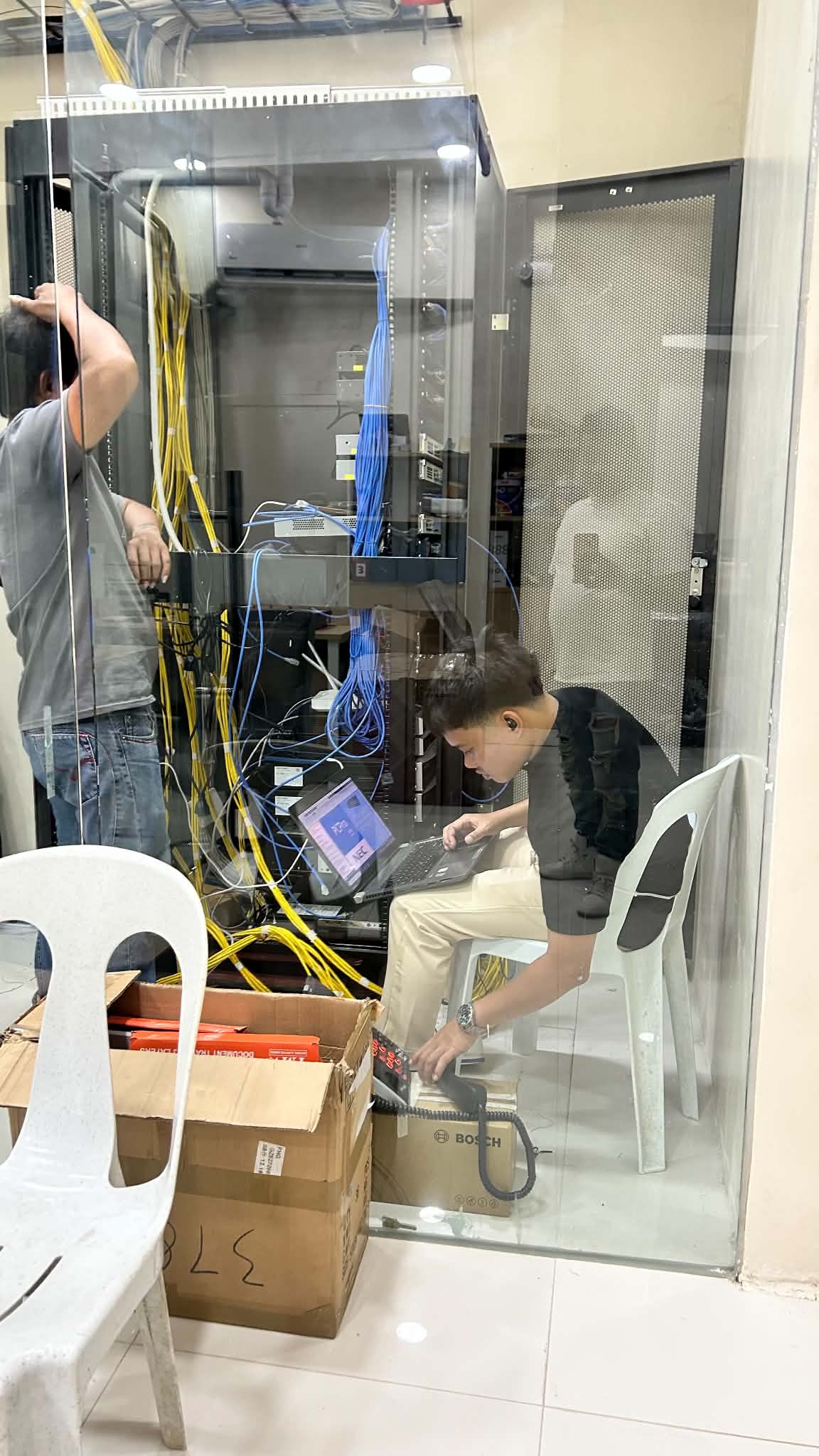

Technician seated in the server room testing terminated cable runs on a laptop while a colleague works on cable management above.

Every run tested and verified before it's dressed into the final layout.

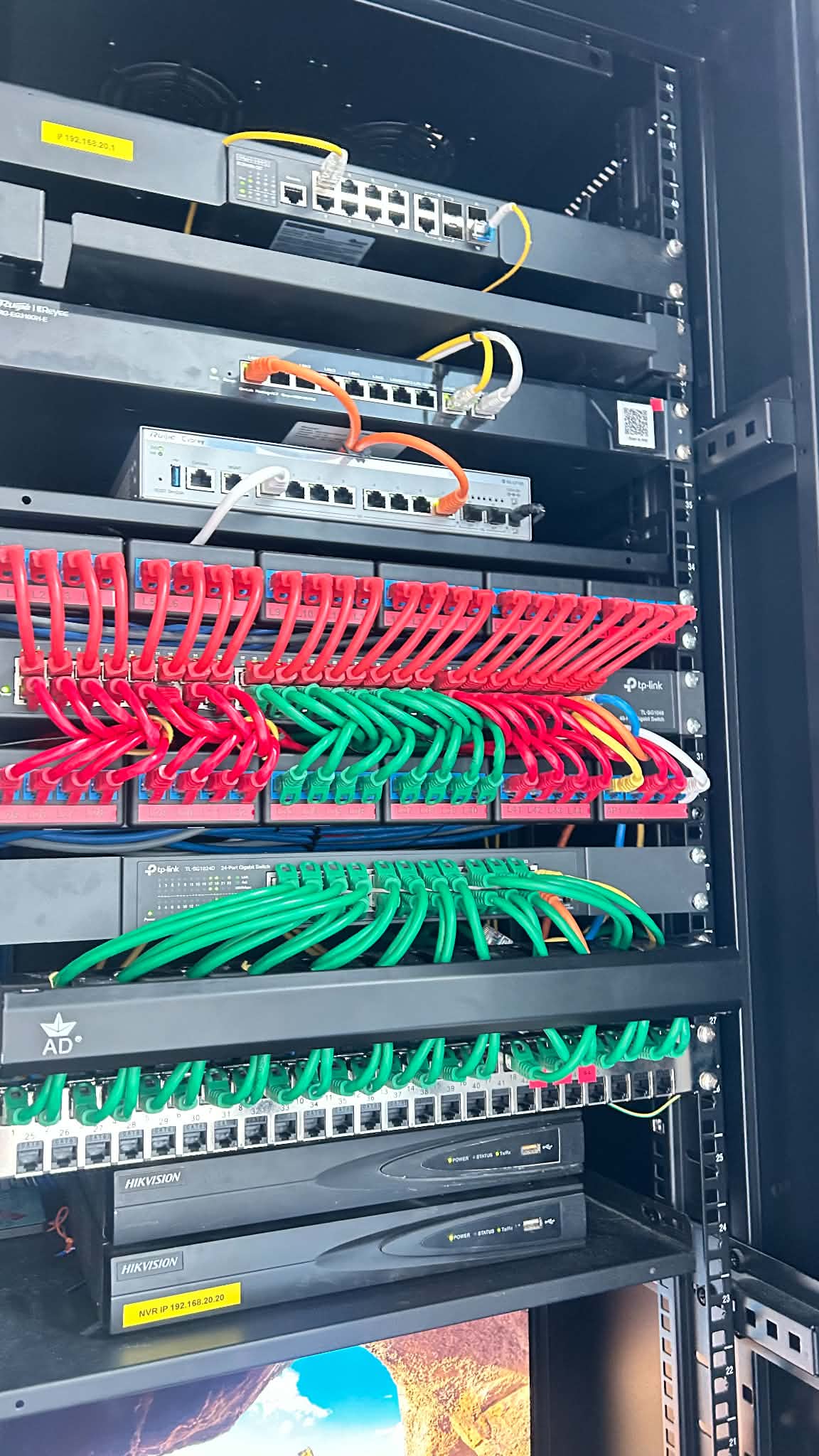

Close-up of rack-mounted switches and patch panels with neatly dressed red and green Cat6 patch cables above two Hikvision NVRs.

Switches and patch panels dressed with color-coded cabling, with the CCTV NVRs mounted directly below.

Completed server rack fully populated with switches, color-coded patch panels, dual NVRs, a rack-mounted monitor, and a UPS.
The Result

A single rack running networking, structured cabling, and surveillance together.

From an empty frame and loose cable drops to a fully configured, color-coded rack - switches, patch panels, dual NVRs, and monitoring all mounted, labeled, and ready for day-to-day use.
